Setup eLead Endpoint

Emma at improveit 360
  • Updated

Setup

Navigate to the Setup menu

Setup Gear Icon.png

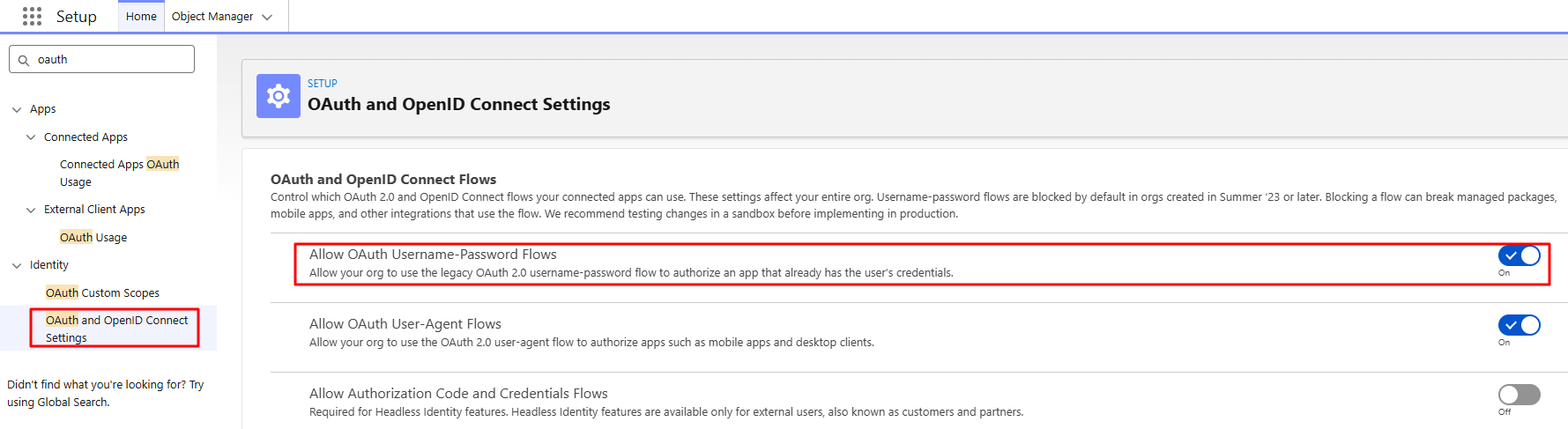

Search for OAuth and OpenID Connect Settings

Then, Enable "Allow OAuth Username-Password Flows"



Create an eLead User

  •
    • Note: Use an email address you have access to as you need to verify the email and set a password.
    • User License = Salesforce Integration
    • Profile = Salesforce API Only System Integrations

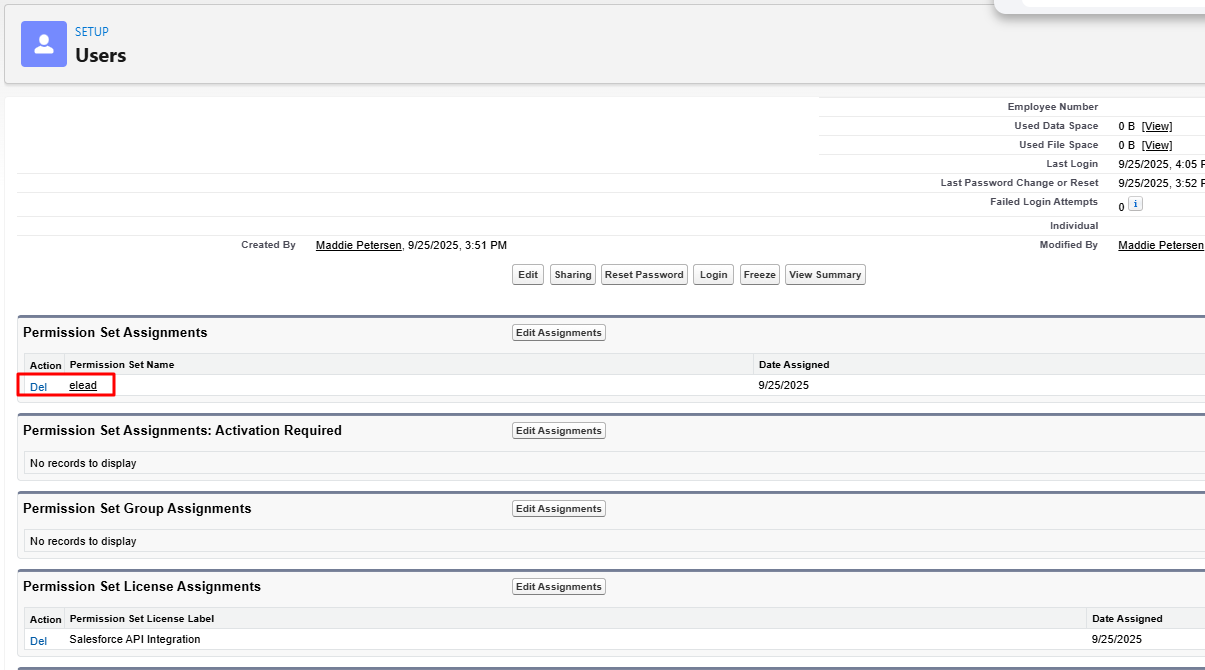

  • Go to Company Information -> Assign "Salesforce API Integration" permission set to the User you created
    • Or, on User page, scroll down to 'Permission Set License Assignments' > click 'Edit' > select 'SalesforceAPI Integration'

  • Create a Permission Set called "eLead"
    • Leave Session Activation Required and License blank

  • Add the following Permissions to Permission Set:
    • Add all eLead Custom Metadata Types

  •
    • Add all eLead Apex Classes

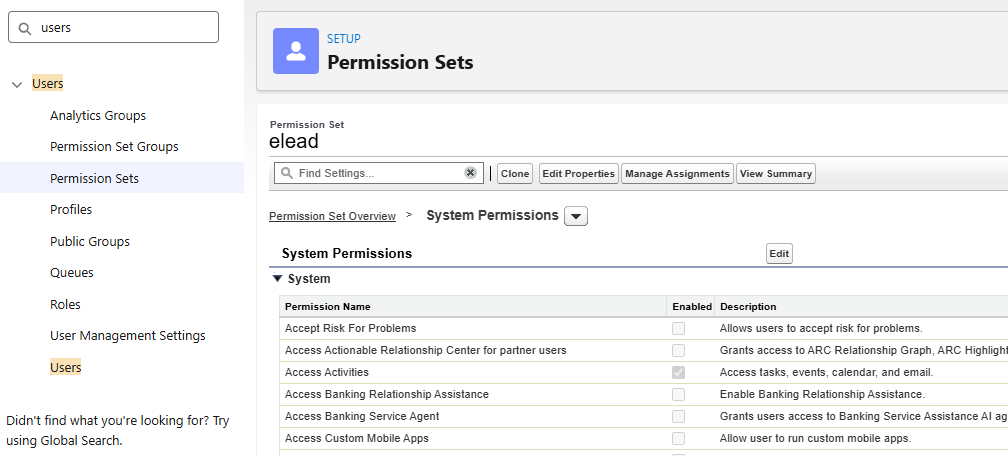

  • Add the following System Permissions:

    • Access Activities
    • API Enabled
    • Edit Tasks
    • Modify All Data
    • Password Never Expires
    • View All Custom Settings

    • View All Data

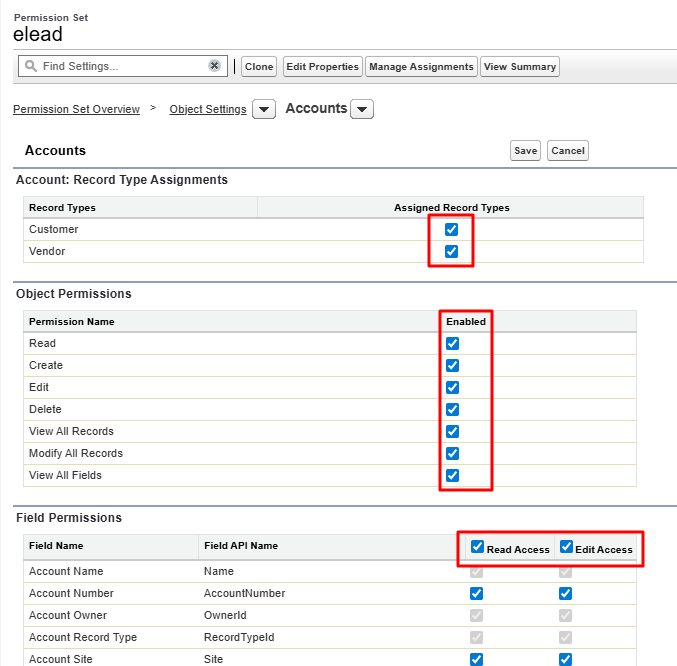

  • Object Permissions and Field Permissions - Add Read, Create, Edit, View All, Modify All Permissions for the following Objects. Add Read Access and Edit Access for all fields on the following Objects.
    • Account
      • Add both Customer and Vendor as Assigned Record Types
    • Address
    • Contact
    • eLead
    • Inquiry
    • Lead Source
    • Sales Opportunity
    • Sales Appointment
    • Sales Appointment Opportunities
    • Staff
    • Territory



  • Assign the eLead Permission Set to the eLead User you created

Create External Client App

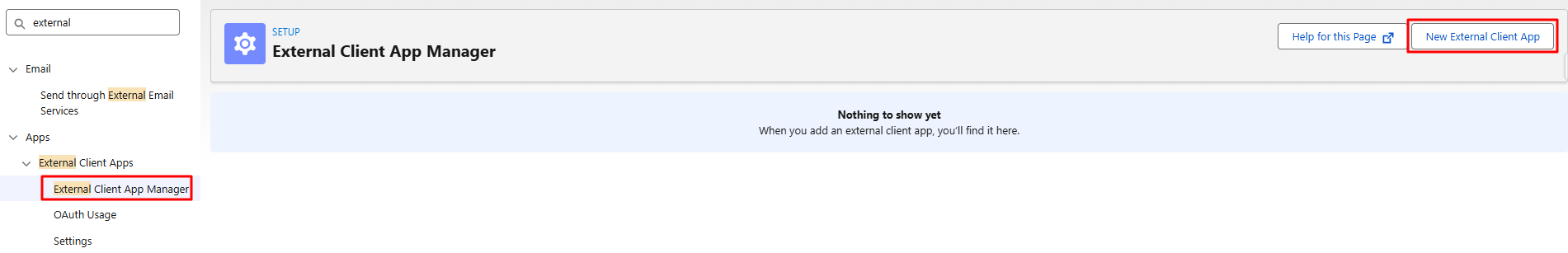

  • In Setup, search for External Client App Manager
    • Apps -> External Client Apps> External Client App Manager > New External Client App

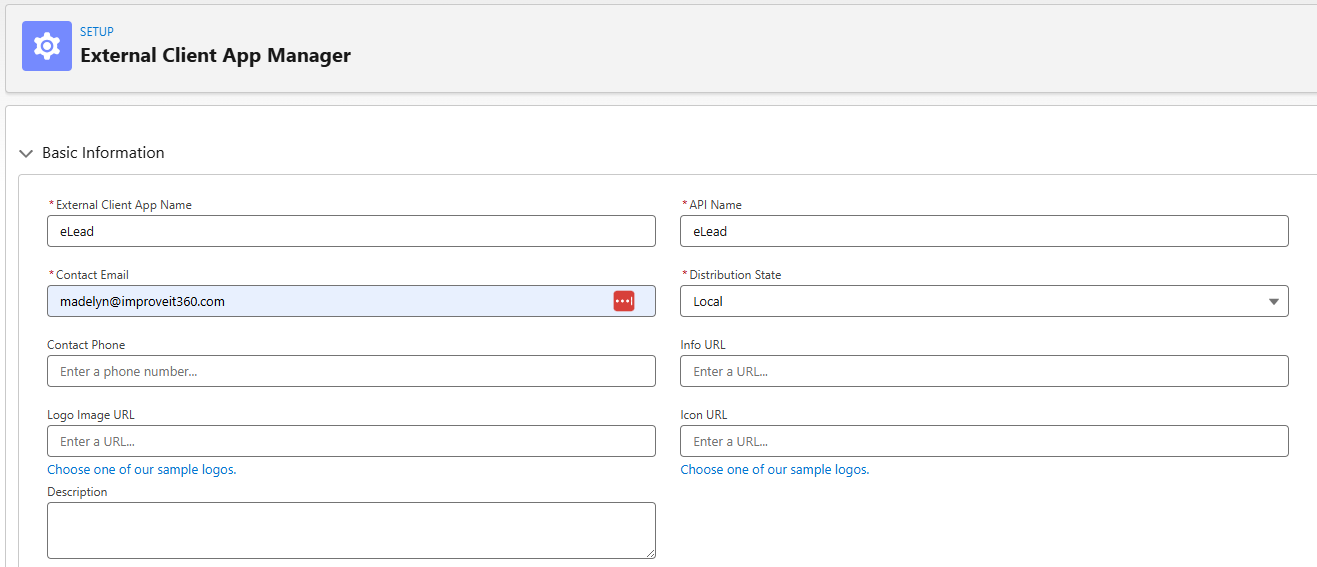

  • Fill out required fields in "Basic Information" section
    • External Client App Name: eLead
    • API Name: this will auto-populate
    • Contact Email: your email

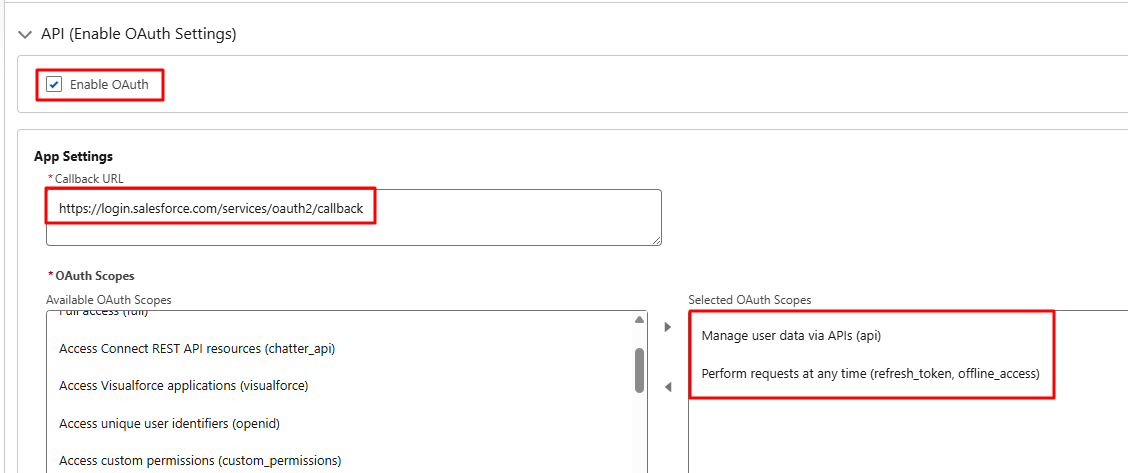

  • Open the API section, enable the setting "Enable OAuth Settings"
    • In the "Callback URL" field, enter https://login.salesforce.com/services/oauth2/callback
    • In "Selected OAuth Scopes", select the following options
      • "Manage user data via APIs (api)"
      • "Perform requests at any time (refresh_token, offline_access)"

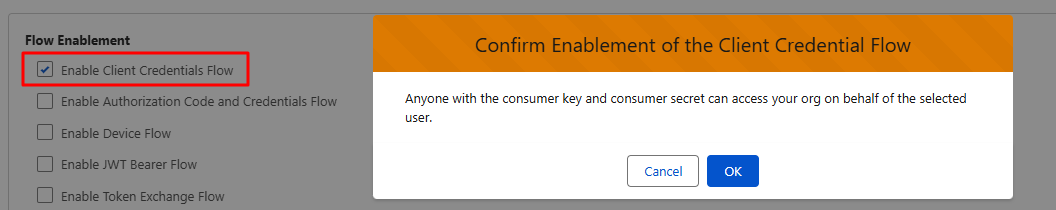

  • In Flow Enablement, check Enable Client Credentials Flow and click OK

  •

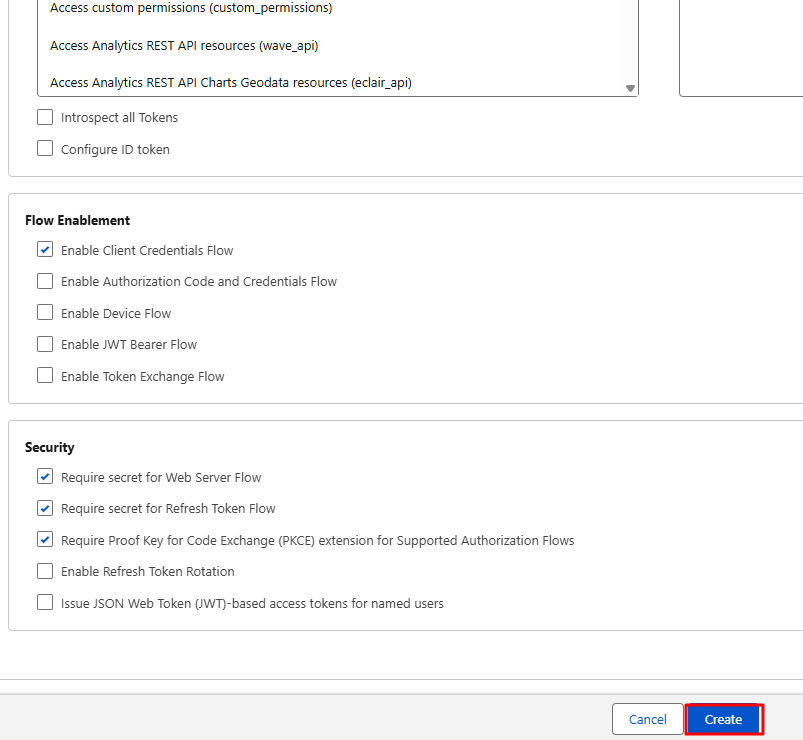

    • Click "Create"

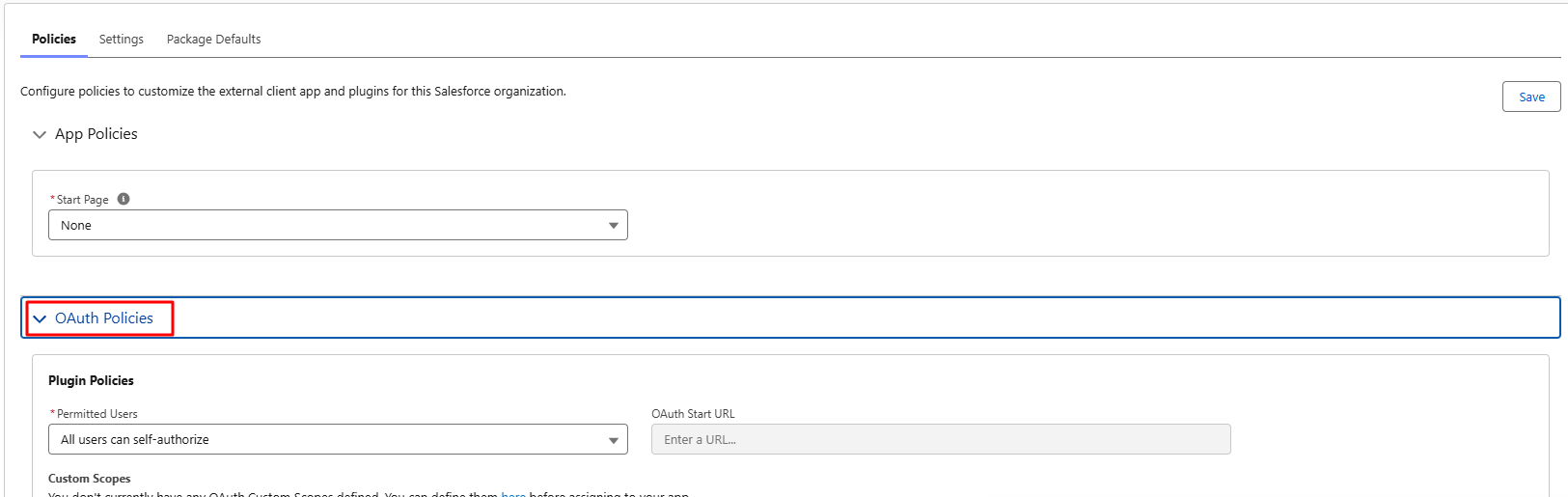

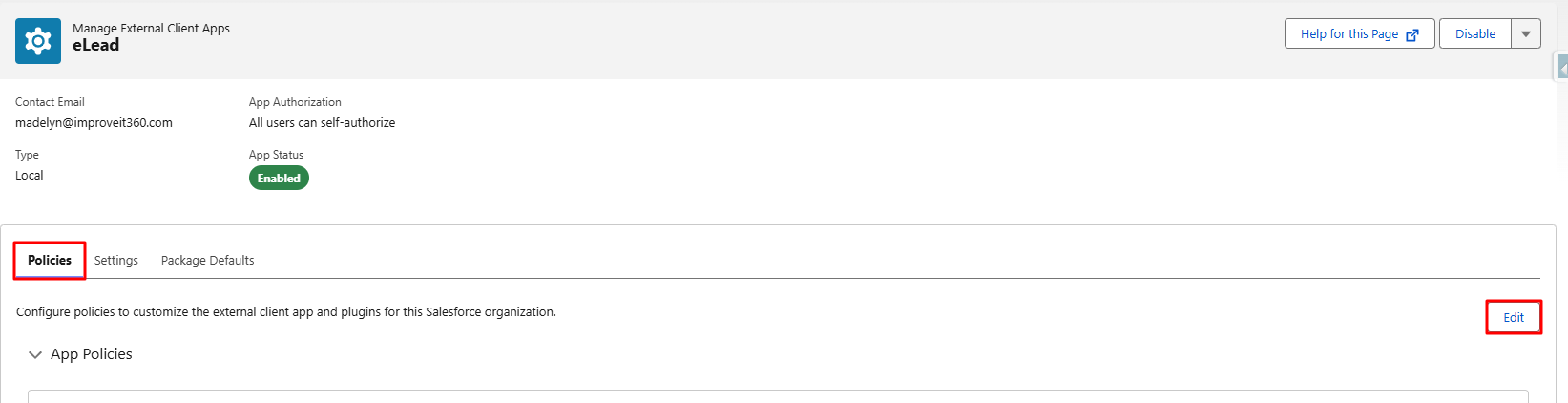

  • Click on the Policies tab, then click Edit



  • Open OAuth Policies section

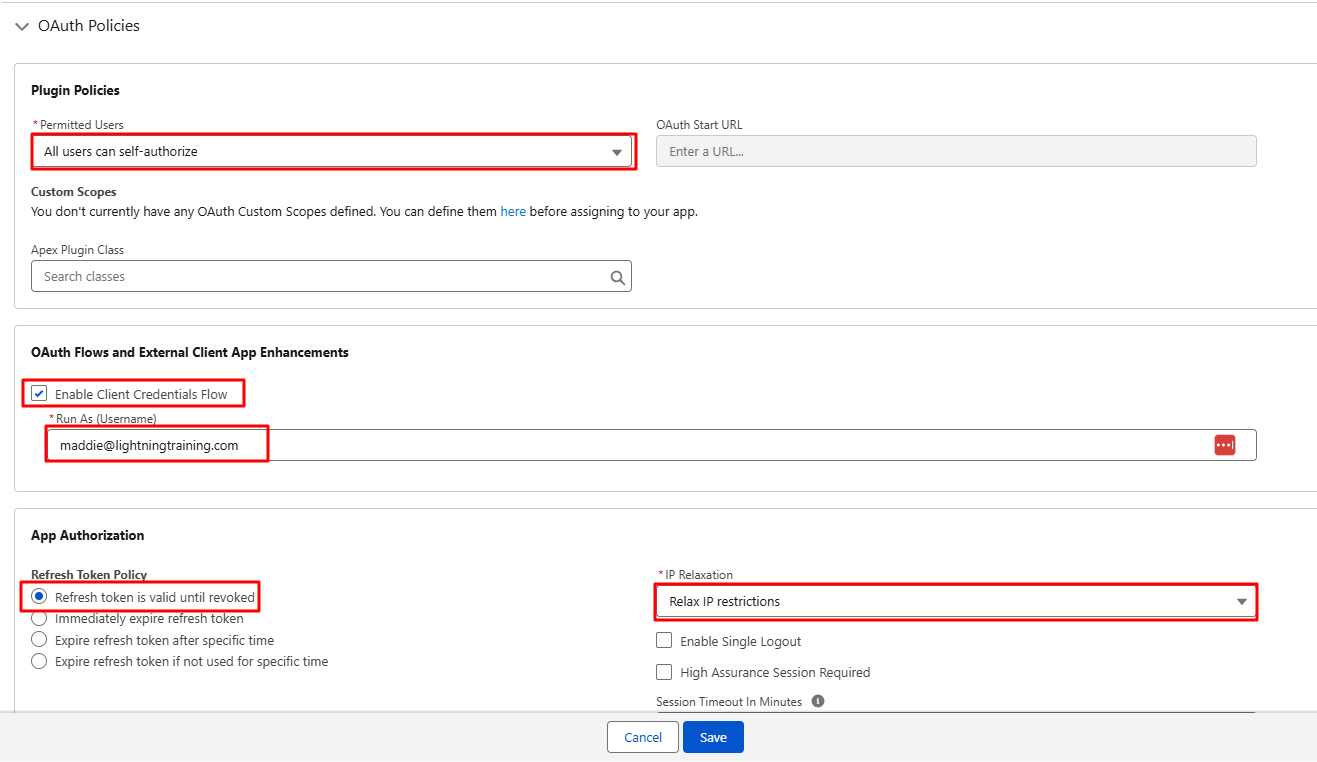

  • Ensure the following settings in the OAuth Policies section, then "Save"
    • Permitted Users: All users can self-authorize
    • Enable Client Credentials Flow: True
    • Run As (Username): this will be the eLead User's Username
      • Go to setup > Users > copy Username
    • Refresh Token Policy: Refresh token is valid until revoked
    • IP Relaxation: Relax IP Restrictions

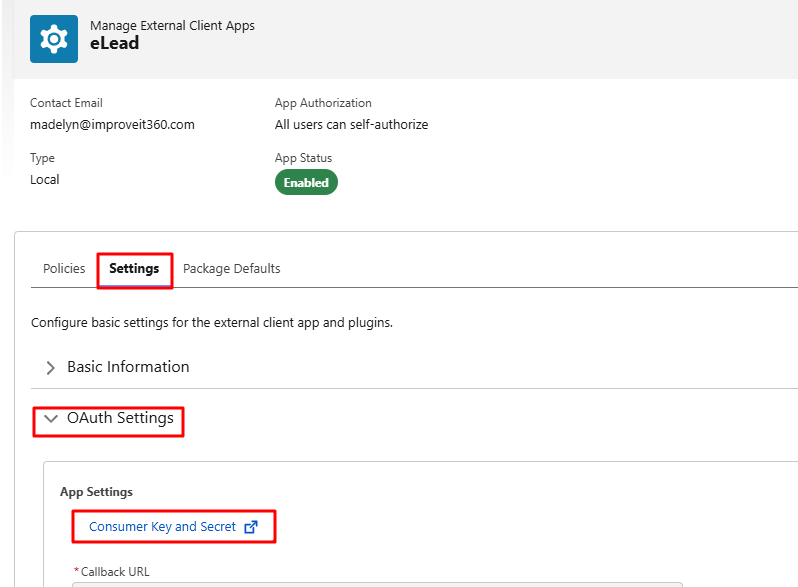

  • Navigate back to the External Client App's Settings tab
    • Open the OAuth Settings section and select Consumer Key and Secret

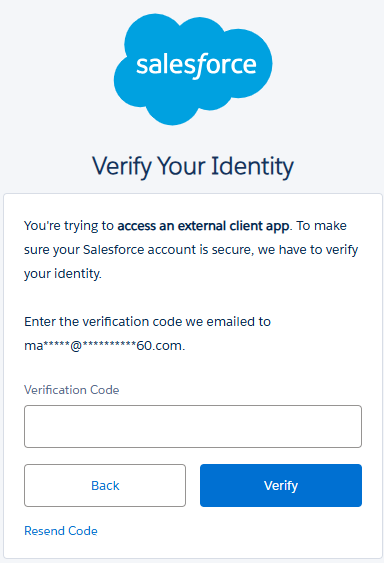

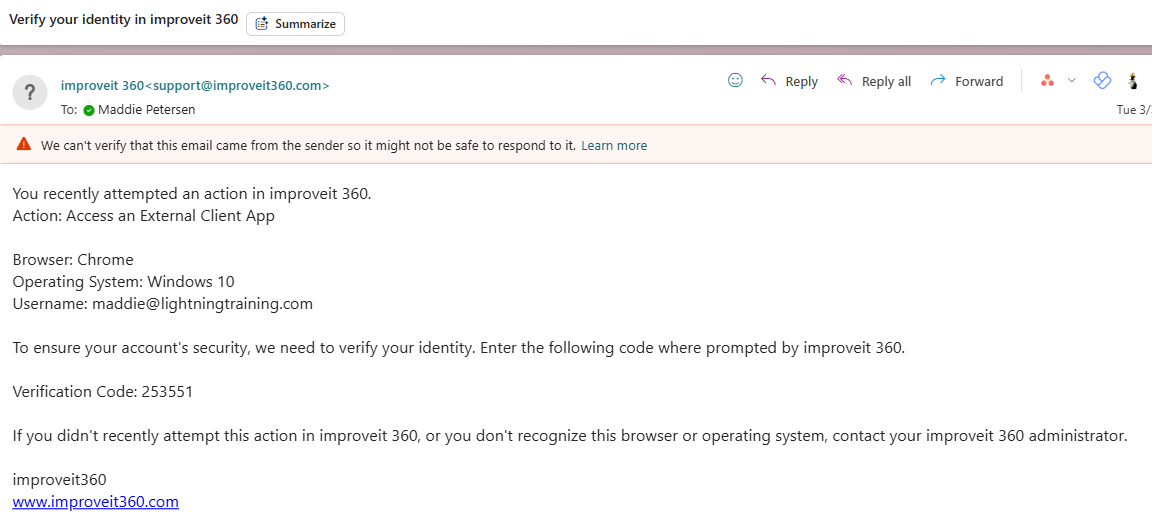

      • A code will be sent to your User's email address to authenticate

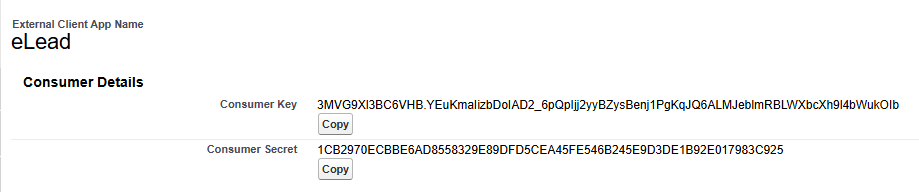

  • Copy your Consumer Key and Secret
    • store them somewhere safe as they will be required for testing and sending eLeads into your system



Testing eLeads - Use Postman

Use the Postman application to test the eLead Endpoint.

Copy and paste the End point into Postman and send your parameters to authorize a connection.

Authentication

POST to endpoint to get Bearer token:

Key Value
grant_type Set to "client_credentials"
client_id "Consumer Key" from External Client App
client_secret "Consumer Secret" from External Client App

Note: Params add to the base endpoint to build the request

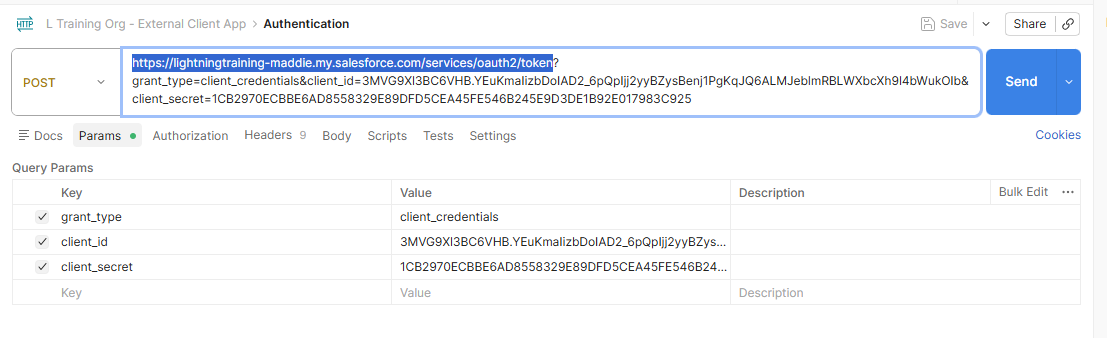

Sample Request
https://lightningtraining-maddie.my.salesforce.com/services/oauth2/token?grant_type=client_credentials&client_id=3MVG9Xl3BC6VHB.YEuKmaIizbDoIAD2_6pQpIjj2yyBZysBenj1PgKqJQ6ALMJeblmRBLWXbcXh9l4bWukOIb&client_secret=1CB2970ECBBE6AD8558329E89DFD5CEA45FE546B245E9D3DE1B92E017983C925

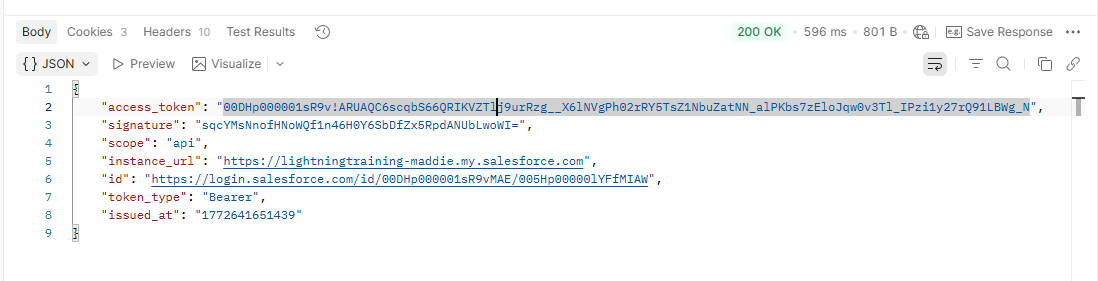

You will receive a response.

Sample Response:

{
    "access_token": "00DHp000001sR9v!ARUAQC6scqbS66QRIKVZTlj9urRzg__X6lNVgPh02rRY5TsZ1NbuZatNN_alPKbs7zEloJqw0v3Tl_IPzi1y27rQ91LBWg_N",
    "signature": "sqcYMsNnofHNoWQf1n46H0Y6SbDfZx5RpdANUbLwoWI=",
    "scope": "api",
    "instance_url": "https://lightningtraining-maddie.my.salesforce.com",
    "id": "https://login.salesforce.com/id/00DHp000001sR9vMAE/005Hp00000lYFfMIAW",
    "token_type": "Bearer",
    "issued_at": "1772641651439"
}

Copy the Access Token from the Response for the next step



Sending eLeads

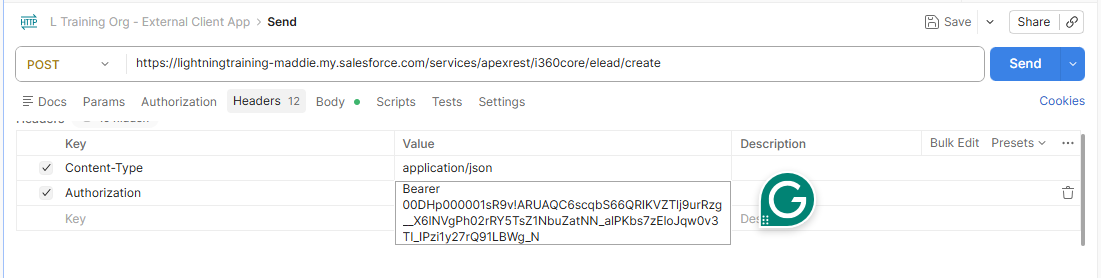

Create another POST to send an eLead

Key Value
Content-Type Set to "application/json"
Authorization Set to "Bearer " + access_token from previous step

Note: Bearer must be spelt with a capital "B" and have a space before the access_token

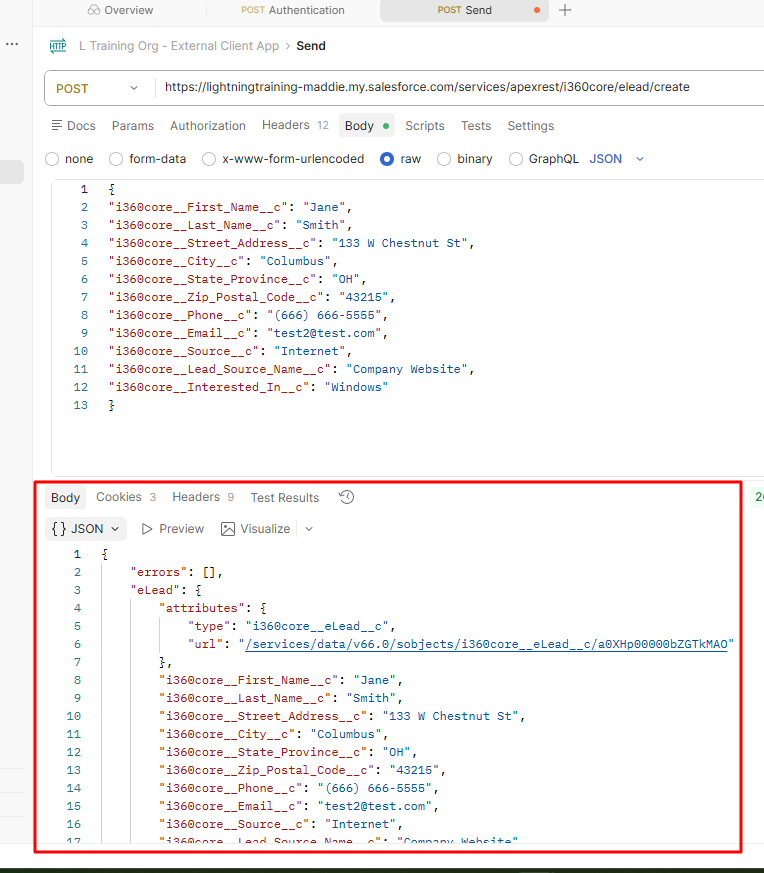

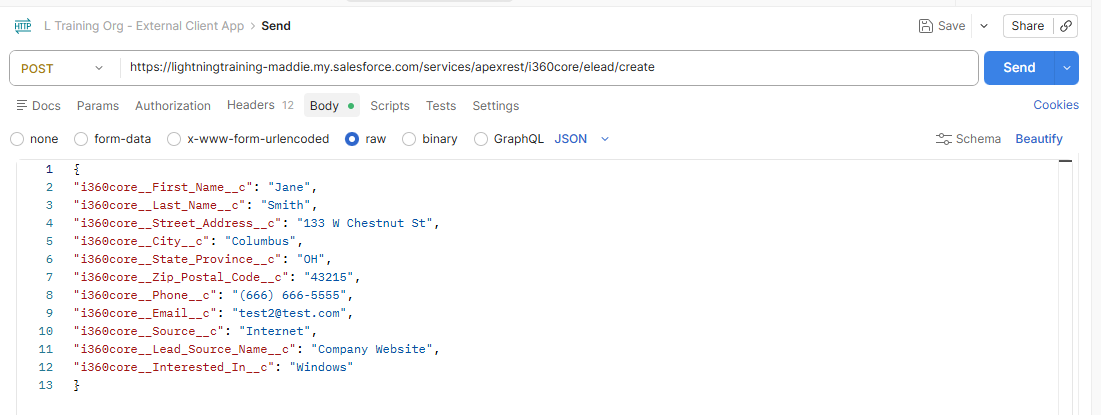

  • Add eLead payload to Body tab (see Sample Payloads section)

Click Send to send the eLead to improveit 360.

You will receive a response message from Postman that the eLead was created.

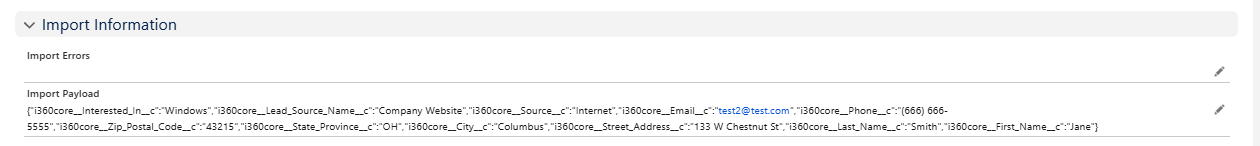

Inside improveit 360, an eLead record will be created

Note: if there are any issues with eLead conversion, they will be displayed in the Import Errors section

Supported Fields

  • JSON properties with an exact match to an eLead field (i360core__First_Name__c for example) will automatically populate eLead fields
  • Anything other than an exact match will need to be configured in the org on the tab called "eLead Endpoint JSON Mapping"
Parameter Field Type Description
i360core__First_Name__c Text(80 Characters)
i360core__Last_Name__c Text(80 Characters)
i360core__Street_Address__c Text(255 Characters)
i360core__City__c Text(255 Characters)
i360core__State_Province__c Text(30 Characters)
i360core__Zip_Postal_Code__c Text(12 Characters)
i360core__Phone__c Phone
i360core__Email__c Email (Must follow email pattern)
i360core__Lead_Source_Name__c Text(80 Characters) Used with i360core__Source__c field to search database for existing Lead Source during the conversion process. If a matching existing Lead Source is not found, a new Lead Source is then created. Note that while this field can actually be up to 255 characters long, a Lead Source record's name can only be 80 characters, so the value passed in via API request should also be limited to 80 characters
i360core__Source__c Text(255 Characters) Used with the i360core__Lead_Source_Name__c field to search the database for existing Lead Sources during the conversion process



Endpoint (POST)

{{base_url}}/services/apexrest/i360core/elead/create

  • go to Setup -> Sites to get the Base URL (domain name)
    • ex: https://mycompany.my.salesforce-sites.com

Sample Header

Key Value
Content-Type application/json
Authorization Bearer {Access Token Value from previous step}

Sample Payloads

{

"i360core__First_Name__c": "Jane",

"i360core__Last_Name__c": "Smith",

"i360core__Street_Address__c": "133 W Chestnut St",

"i360core__City__c": "Columbus",

"i360core__State_Province__c": "OH",

"i360core__Zip_Postal_Code__c": "43215",

"i360core__Phone__c": "(666) 666-5555",

"i360core__Email__c": "test2@test.com",

"i360core__Source__c": "Internet",

"i360core__Lead_Source_Name__c": "Company Website",

"i360core__Interested_In__c": "Windows"

}
{
	"i360core__First_Name__c": "Demo",
	"last-name": "User3",
	"ALLCAPSFIELD": "test value",
	"address": {
		"street_address": "130 E Chestnut",
		"city": "Columbus",
		"subAddress": {
			"city": "Different City",
			"zip_code": "43215"
		}
	},
	"test-array": ["test1", "test2"],
	"unmappedField": "unmapped value",
	"demo_field": "demo value",
	"marketingCampaign": "test campaign 123"
}

You can also send eLeads in using Query Parameters (HTTP): https://i360lightning.zendesk.com/hc/en-us/articles/24805352166295-eLead-Creation-via-Query-Parameters

What the Lead Provider needs

  • Provide the URL: Example: https://lightning-august2023-maddie.my.salesforce.com/services/apexrest/i360core/elead/create
  • Client ID, Example: 3MVG9HB6vm3GZZR92ZYIH5tX6DDHjTiNPYi0R5sx7F6TtnfGGk0rMOQYpbc69OWH5wvVQ4HLFToRzkHIuBgKJ
  • Client Secret, Example: F72F138A34C0D5C0F4A6B459A43AE5A33399E4064E820898B317B0447FA56A17
  • Product Category values exactly as listed in org
    • Setup > Picklist Value Sets > Product Categories

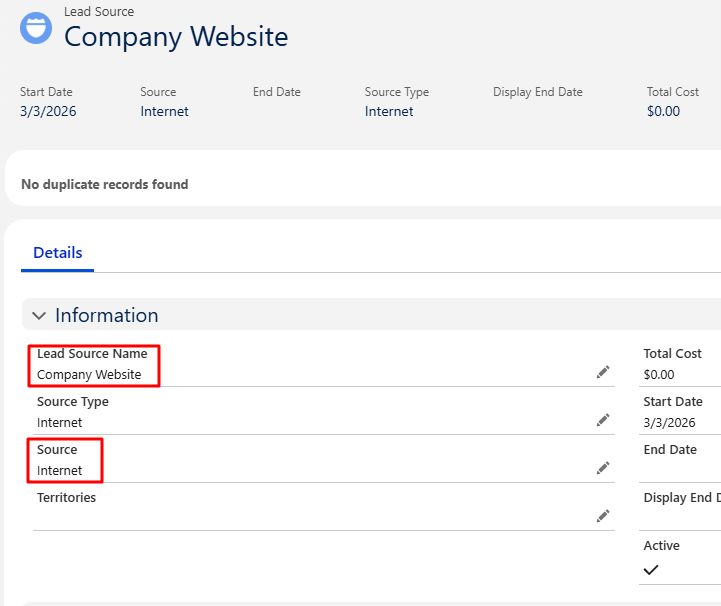

  • Lead Source information - Provide the Lead Source Name and Source for the Lead Source record they should map to

    • This is what is used to find the correct Lead Source record

Ensure Custom Settings are enabled

Navigate to Setup

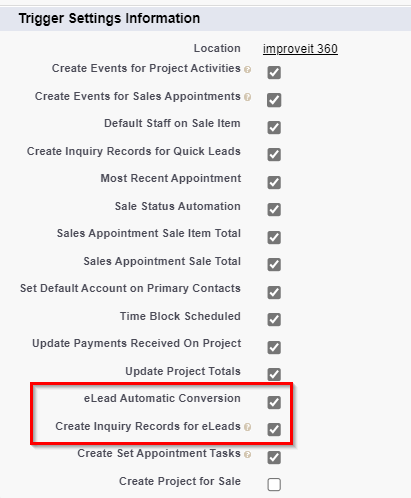

Custom Settings > Trigger Settings > Manage

Be sure the eLead Automatic Conversion checkbox is set to True

If you also want Inquiry records to be created, check the Create Inquiry Records for eLeads also.
